DO88 developed Auxiliary DSG Radiator for VW Golf GTI Mk7 (MQB)
The VW Golf GTI / GTI Performance Pack (220 & 230hp) has no auxiliary radiator for the DSG gearbox. This can cause gearbox temperature problems on a tuned car or during track driving.
A VW Golf R / GTI Clubsport / ED40 already has a stock auxiliary radiator for the DSG gearbox to solve this temperature problem.
This same OE radiator setup from these models can be installed on a GTI but it is very expensive to do, since the entire front bumper etc also needs to be upgraded.

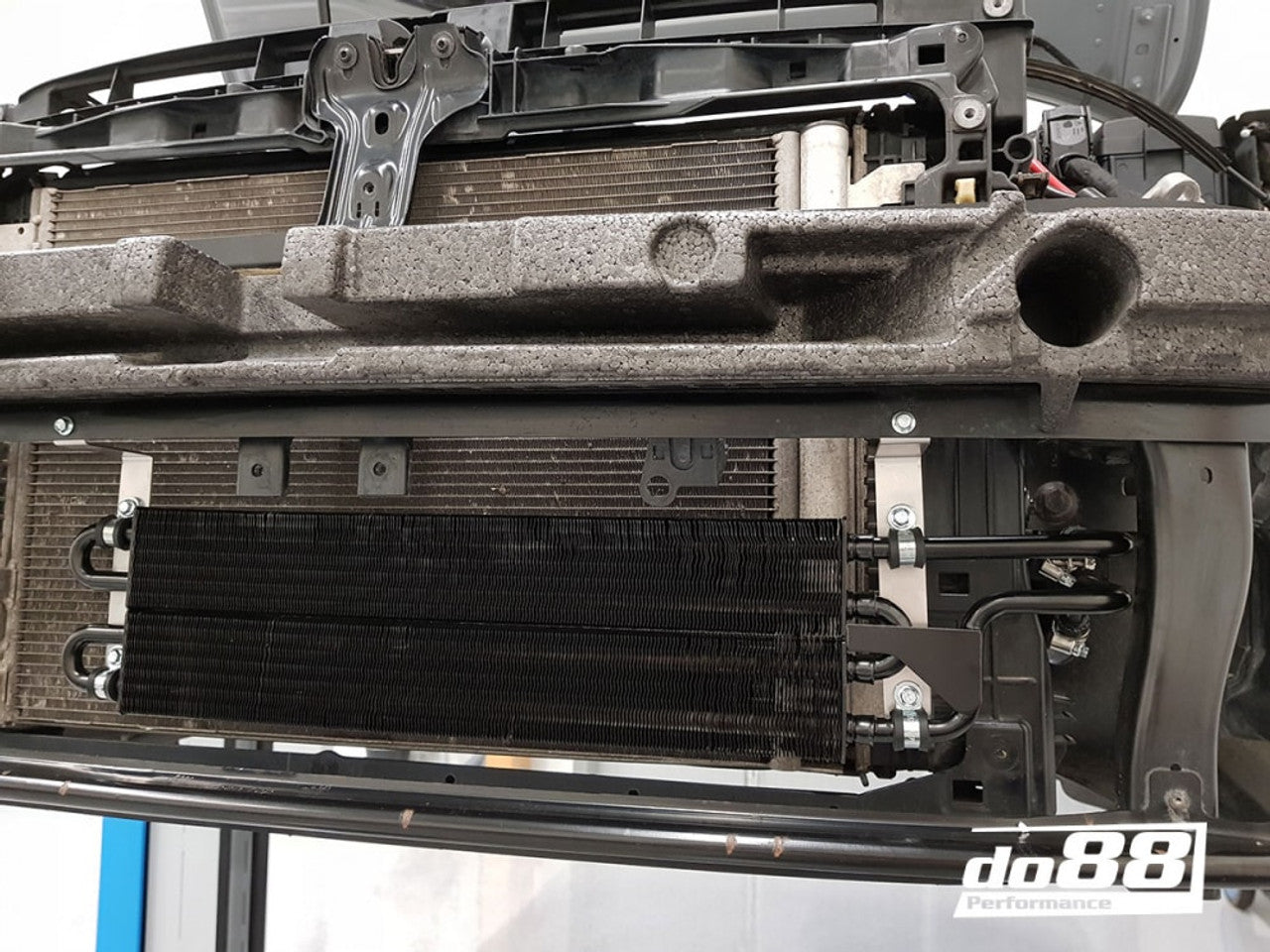

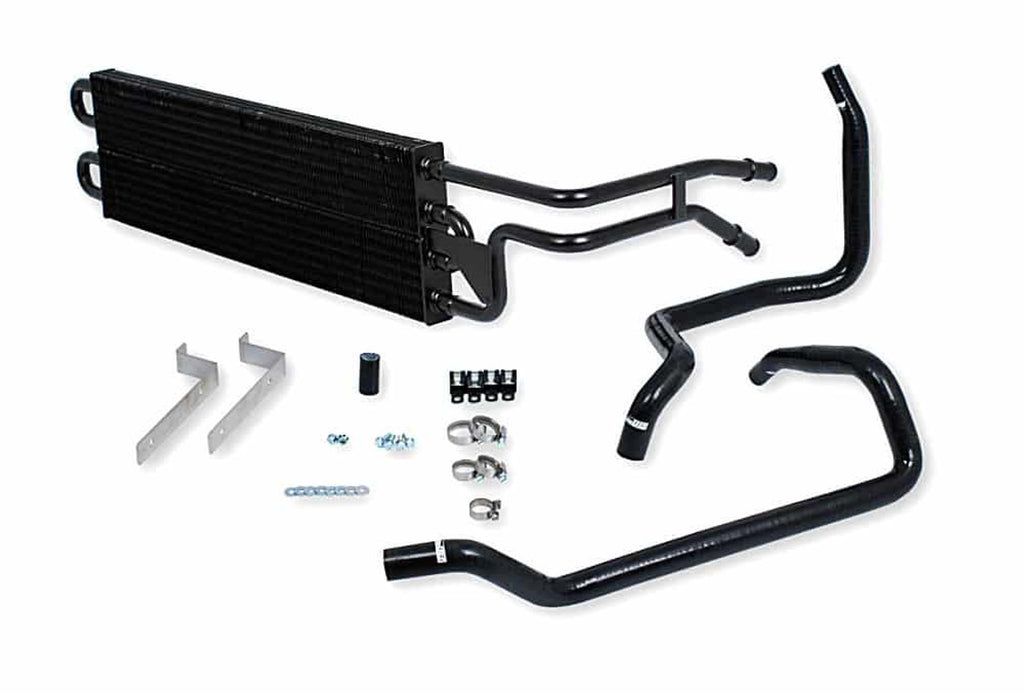

The do88 auxiliary radiator fits your original GTI bumper and pre-cools the cooling water that goes to the gearbox heat exchanger. It is installed in the front of the AC condenser. Hoses, brackets and all other installation hardware are included.

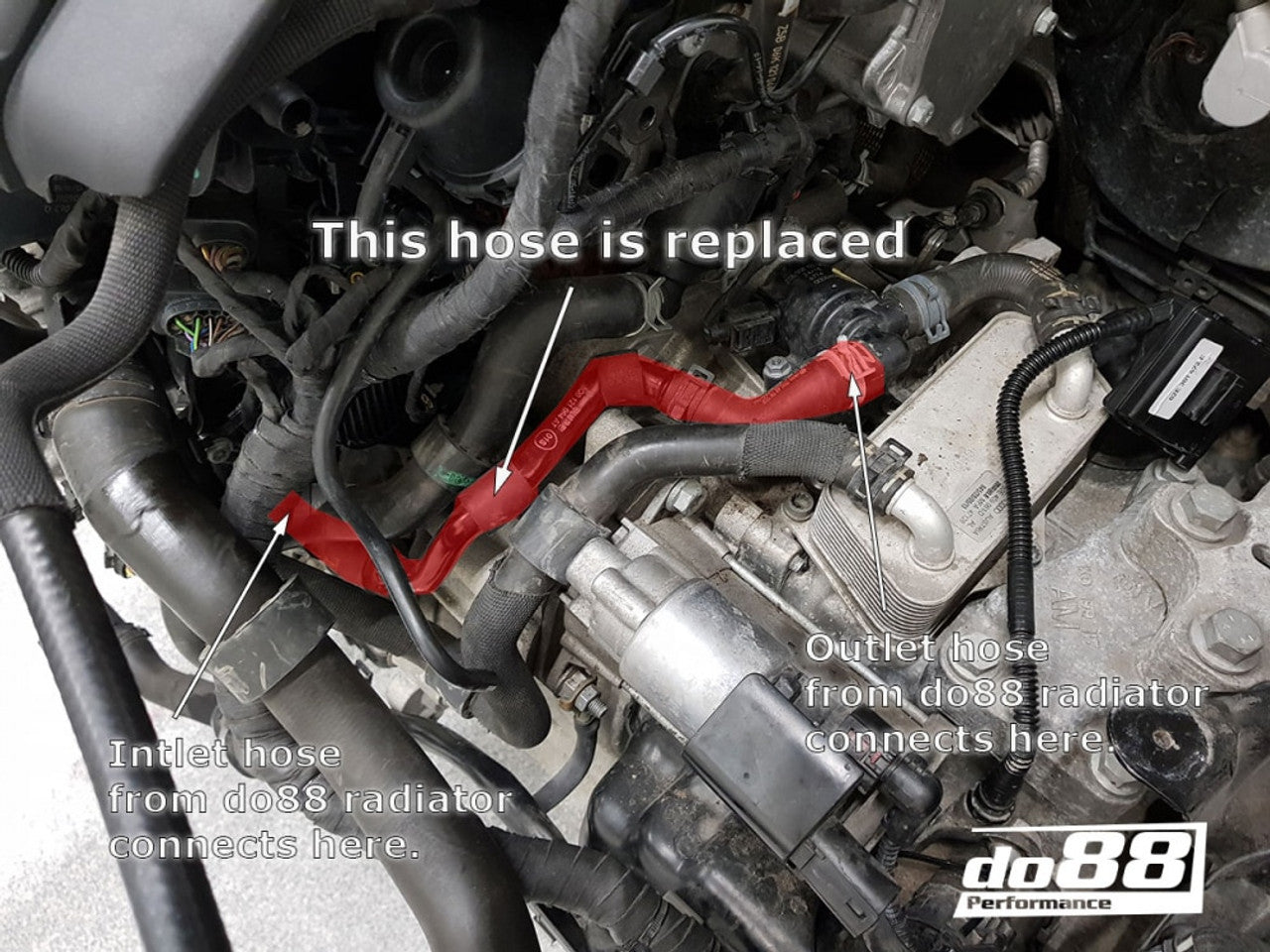

The included installation instructions show the most important steps required when fitting.
Core dimensions: (Length x Height x Thickness): 446 x 131 x 26,5mm
Total dimensions: (Length x Height x Thickness): 652x131x202mm
do88 Part Reference: WC-330, WC330
