Racingline Performance Oil Management System - B9 3.0TFSI - S4 / S5 / SQ5
Not all catch-can kits are equal! RacingLine’s stunning Oil Catch Can System is designed exclusively for Audi’s B9-platform S4, S5 & SQ5, plus other Audi models fitted with the 3.0 TFSI V6T (EA839) motor.

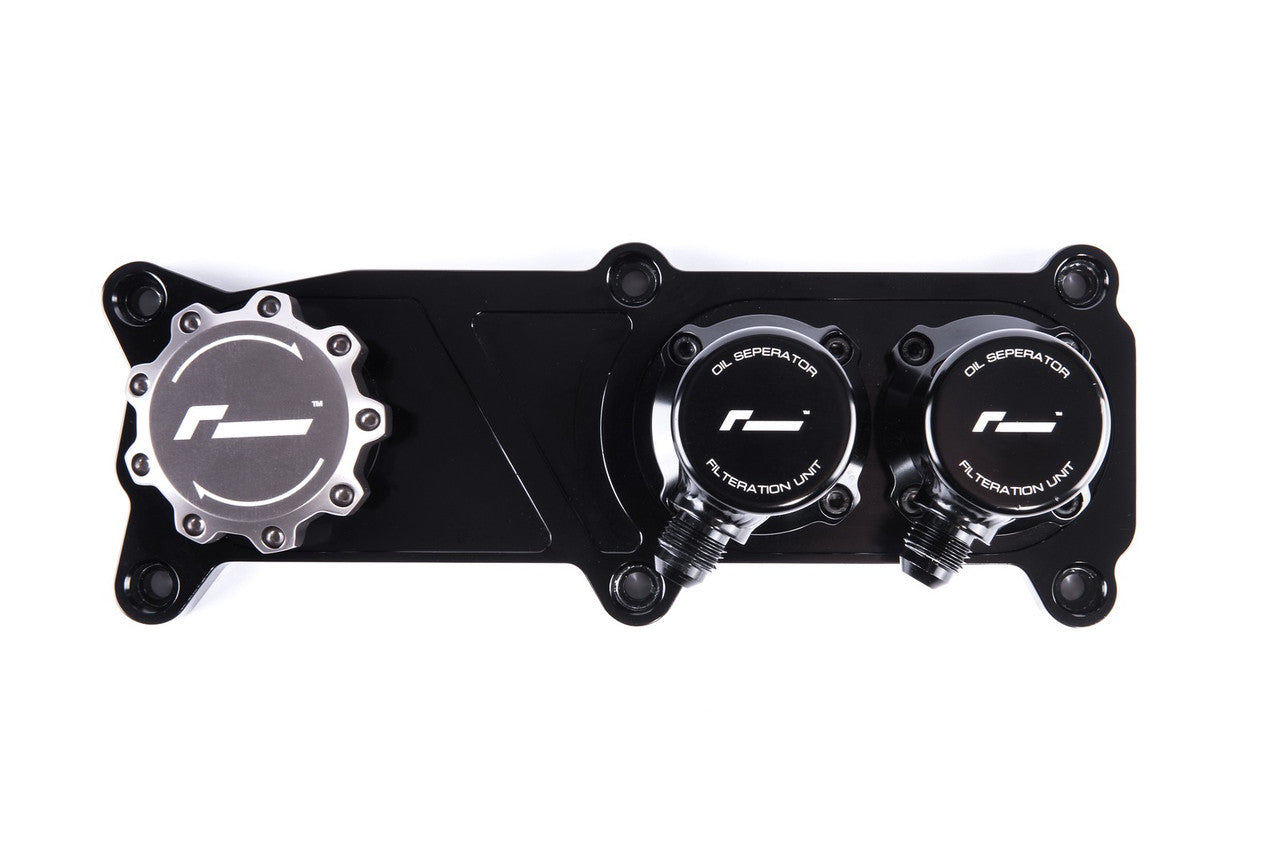

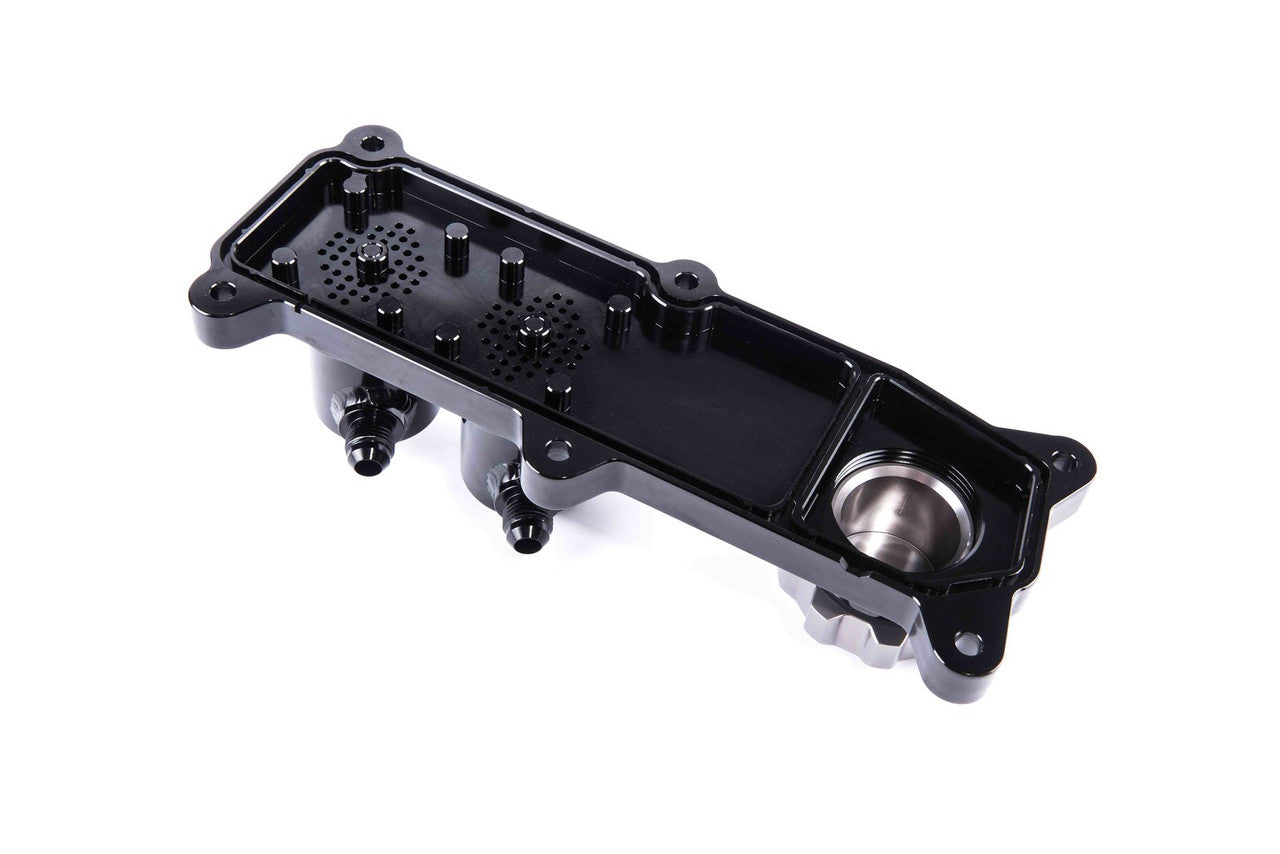

RacingLine’s V6T Catch Can System replaces the factory PCV with a gloss black billet PCV replacement block. This features two internally baffled separator turrets and also deletes the failure-prone factory PCV check valve.
The new PCV block also incorporates a beautiful billet oil filler cap – not only pleasing to use, but ensures no more oil 'weeping' from the factory plastic cap.

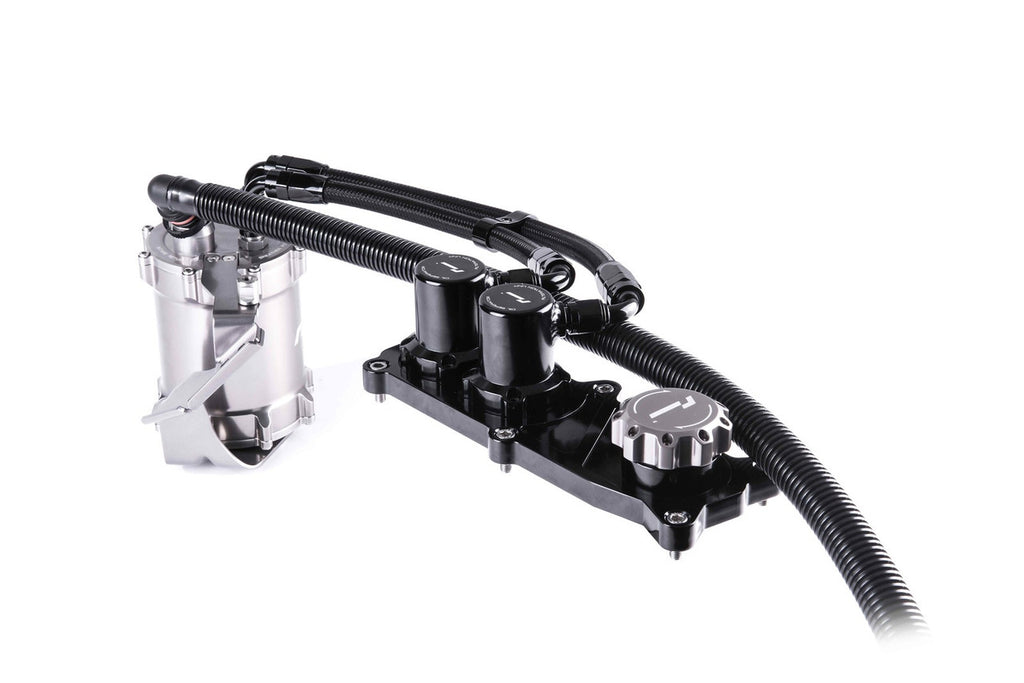

The PCV block feeds to the Catch Can itself via two -6AN hose lines. These oil lines feature an attractive outer nylon braid strengthened by a stainless steel inner weave for maximum resilience.
The Catch Can is constructed from extruded aerospace-grade 6061 aluminum, then CNC machined before being coated in a unique ‘Liquid Titanium’ anodized finish.

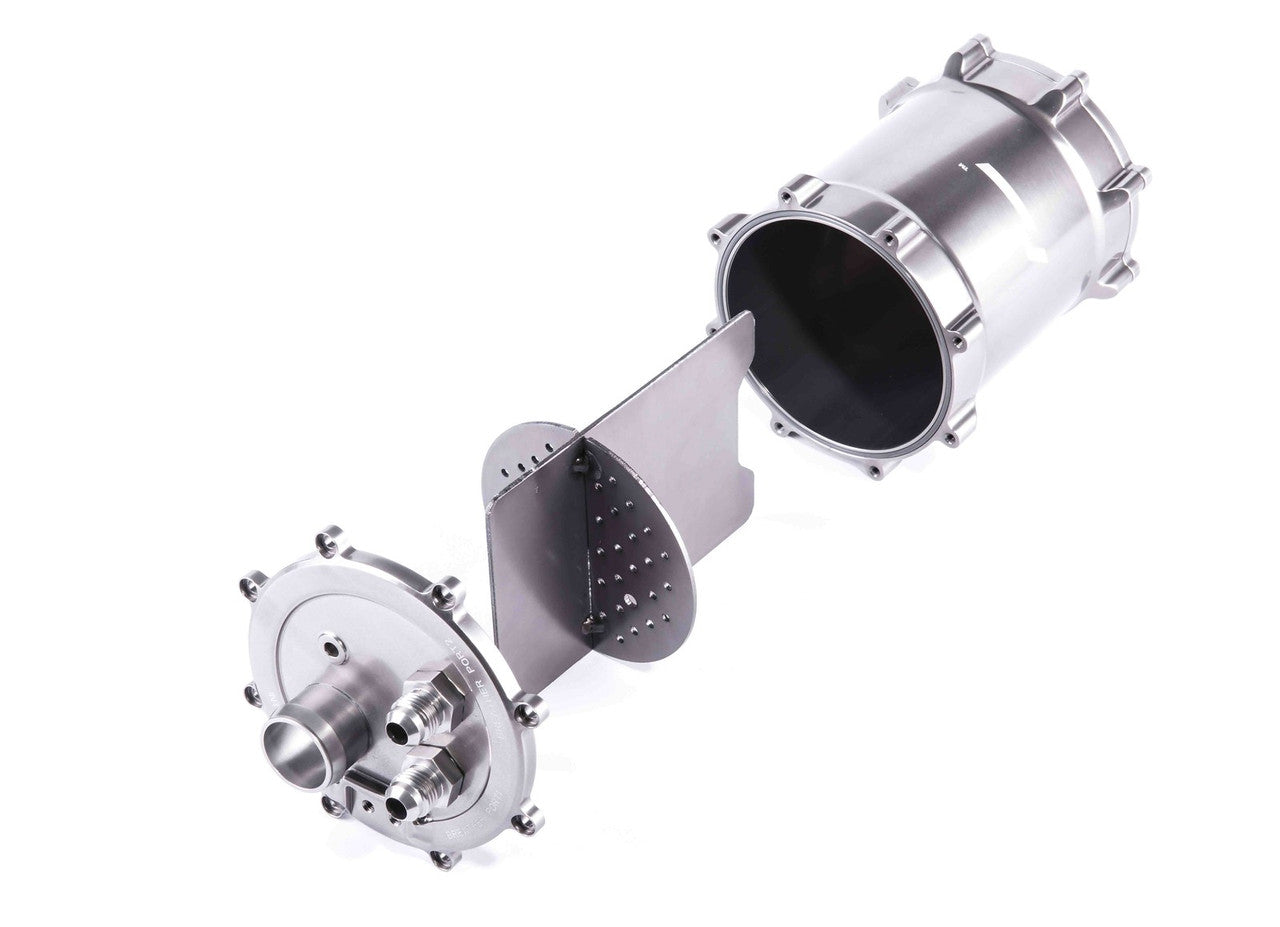

The Can’s three-way baffled internals effectively collect excess moisture and oil vapor to keep your intercooler and inlet tracts free from long-term oil residue build-up.
For improved engine efficiency, it ensures cleaner airflow through to the inlet manifold via the breather return hose, connected with a factory-spec ‘Norma’ quick-release fitting.

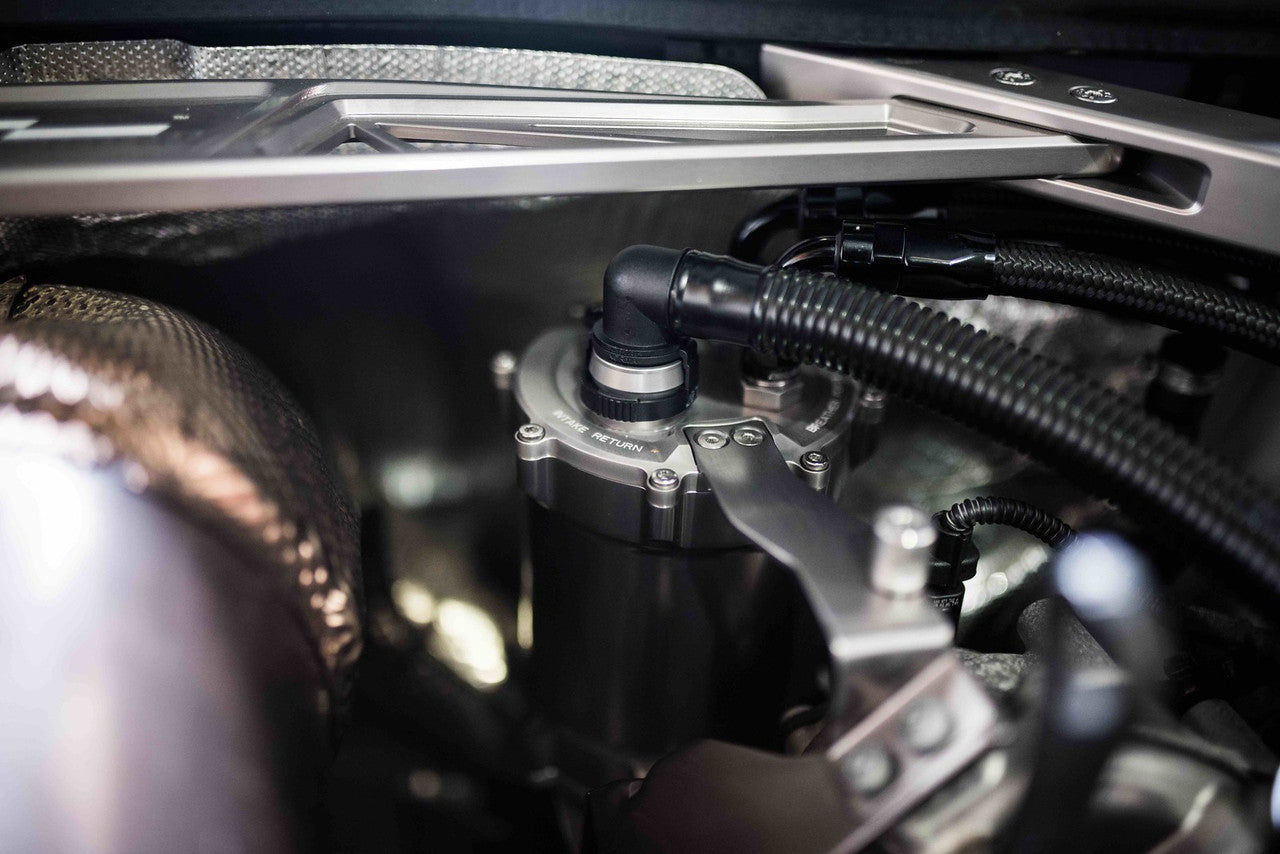

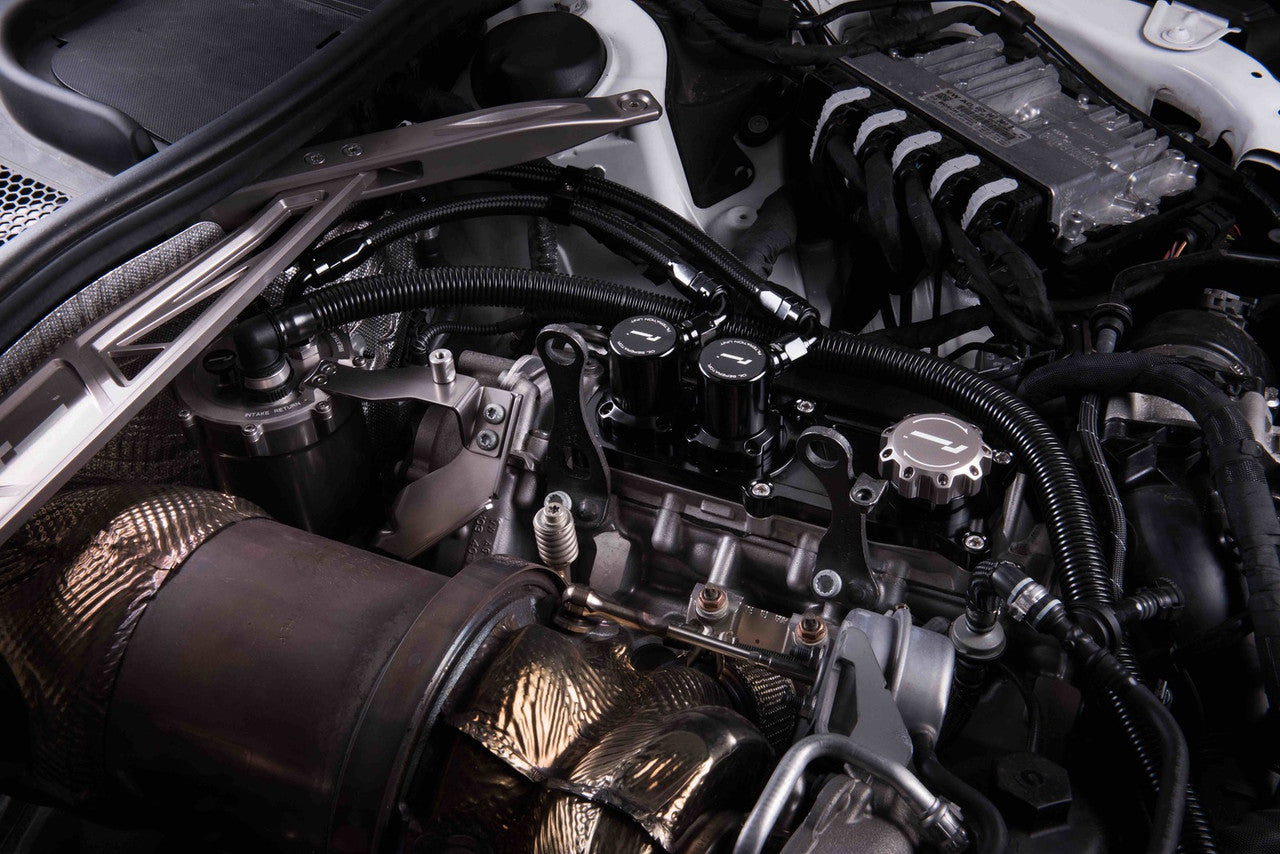

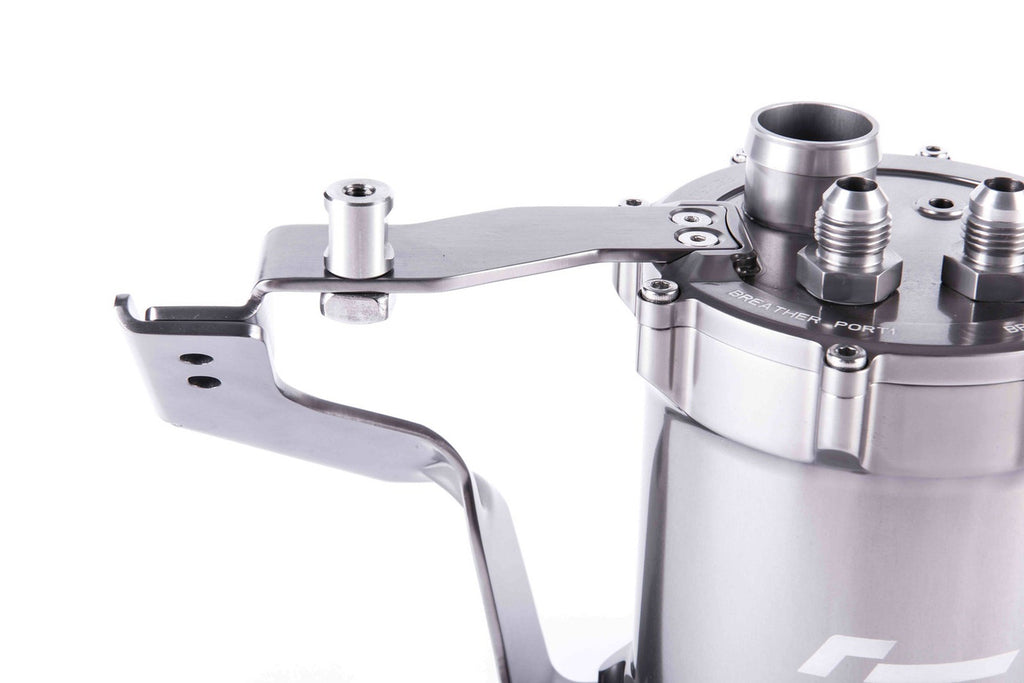

The beautiful Catch Can incorporate pressed aluminum mountings to locate the can at the rear of the engine, adding a great dose of style to your car’s engine bay appearance.
It even includes an integrated mount point to retain the factory engine cover.
The RacingLine Oil Catch Can System fits the following cars with V6T 3.0 TFSI EA839 engines:
> Audi S4 B9 2016+
> Audi S5 B9 2017+
> Audi S4 B9.5 2019+
> Audi S5 B9.5 2019+
> Audi SQ5 80A 2017+
> Audi A6 C8 / A7 C8 / A8 D4
