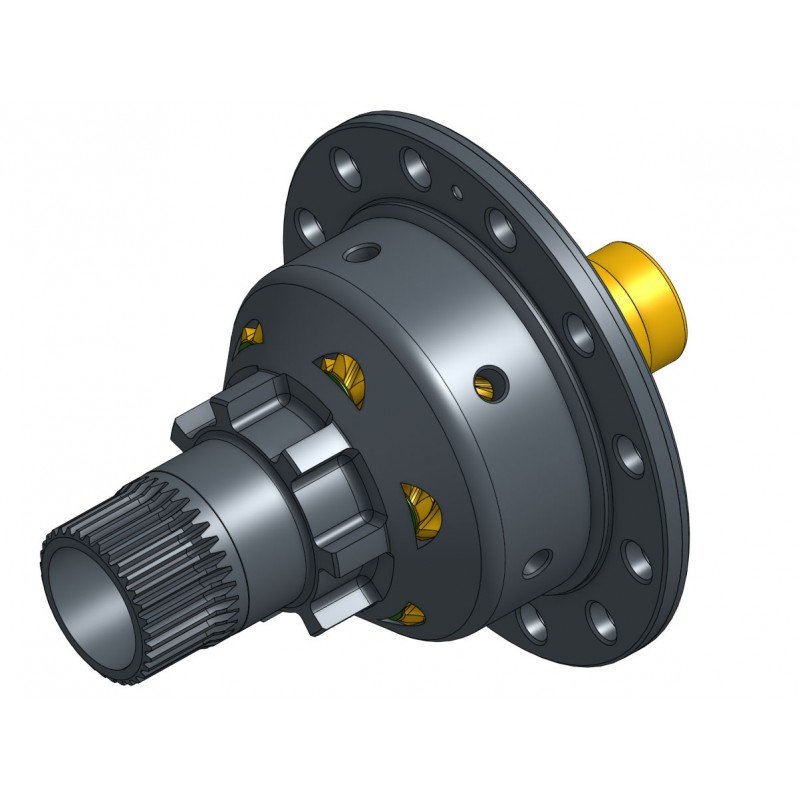

WAVETRAC ATB LSD FOR AUDI DQ500 – TTRS RS3 DSG QUATTRO FRONT
If you have a conventional gear diff (OEM, Quaife, MF, OBX, Truetrac, Torsen, etc.), you’re on a race track for a track day, and during cornering your inside wheel bumps over the curbing. This is normal for track driving. The issue is that for the brief moments your inside tire becomes unloaded when bouncing over curbs, your other wheel is not getting drive – is not putting the power down. Gear diffs need load on both axles in order to function. The result on a track (or during aggressive driving) is that there are many times when a normal gear diff supplies only intermittent power to the gripping wheel.
Now, same track with Wavetrac: the patented cam device in the Wavetrac prevents loss of drive when that inside wheel is unloaded. The device is able to generate a load inside the diff (to replace the lost load as it happens) that can then be biased to the gripping wheel – in the end making more consistent power delivery through a corner. That makes the car more predictable, and faster overall.
Other benefits
- Patented Carbon Fibre Bias Plate for the pinions. All other gear type LSDs run the pinions on the housing, meaning the friction from 0 miles is different to 100 miles, thus effectiveness is reduced over the life of the diff. The Wavetrac performance is consistent with the Carbon Fibre bias plates!
- Patented Wave Profile eliminates the effect of a near to and zero load condition drive ability issues found in all other gear types ATB LSDs.
- ARP Bolts used throughout for superior faster reliability.
- 9310 steel gears run in billet or forged steel bodies.
